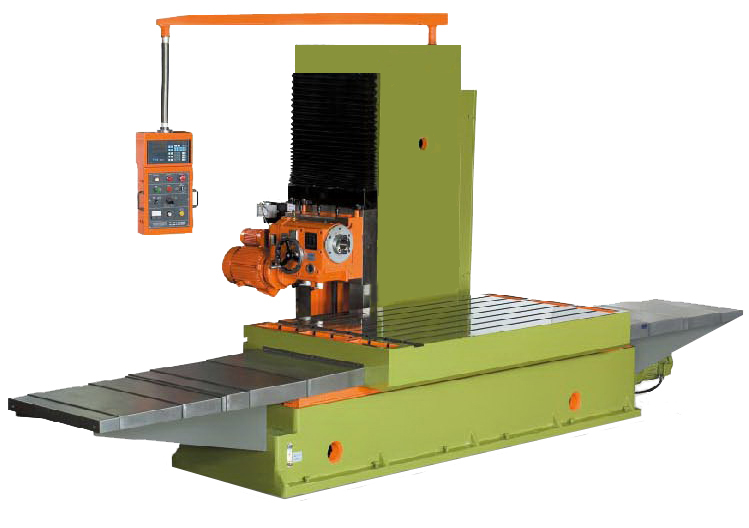

SMALL SIZE MILLING MACHINES YA SERIES
Machine features
увеличить

High-precision gears of the gearbox of the spindle head provide high torque, quality and precision in heavy machining.

увеличить

Hydraulic index table enables high-speed production efficiency

SMALL SIZE MILLING MACHINES YA SERIES
Parameters/Model Unit YA
-1500		 YA
-2000		 YA
-2500		 YA
-3000		 YA
-4000		 YA
-5000
X Axis travel mm 1500 2000 2500 3000 4000 5000
Y Axis travel mm 600 8000/1000,1200
Table (length) mm 1500 2000 2500 3000 4000 5000
Table (width) mm 700 800
Table (width)/option mm - 1200
Spindle power HP 10 10/15
Spindle stroke mm 300 300 (10 HP) / 400,600 (15 HP)
Spindle speed rpm 90~615, 6-gears (10 HP); 80~800, 9-gears (15 HP);
kg 5500 8600 11000 12500 15000 19000
Machine length mm 4900 5900 7100 8000 10000 12000
Machine width mm 2030 2200 2300 2300 2300 2300
Machine height mm 2270 2780 2780 2780 2800 2800


Standart systems and accessories
- Machining zone cooling system - Pneumatic tool lock system
- Working light - Micro feeding adjustment
- Guidelines have plating Turcite-B - Automatic lubricators for buttom guidelines
- Automatic hydraulic crossbeam lock - Safety crossbeam cover
- Tool box - Manual operation
Additional options
- Custom made cutting and auxiliary tools - Different spindle (15 HP)
- Workpiece for machining test - Digital display device Fagor
- Machining heads - Other accessories based on customer requirements
