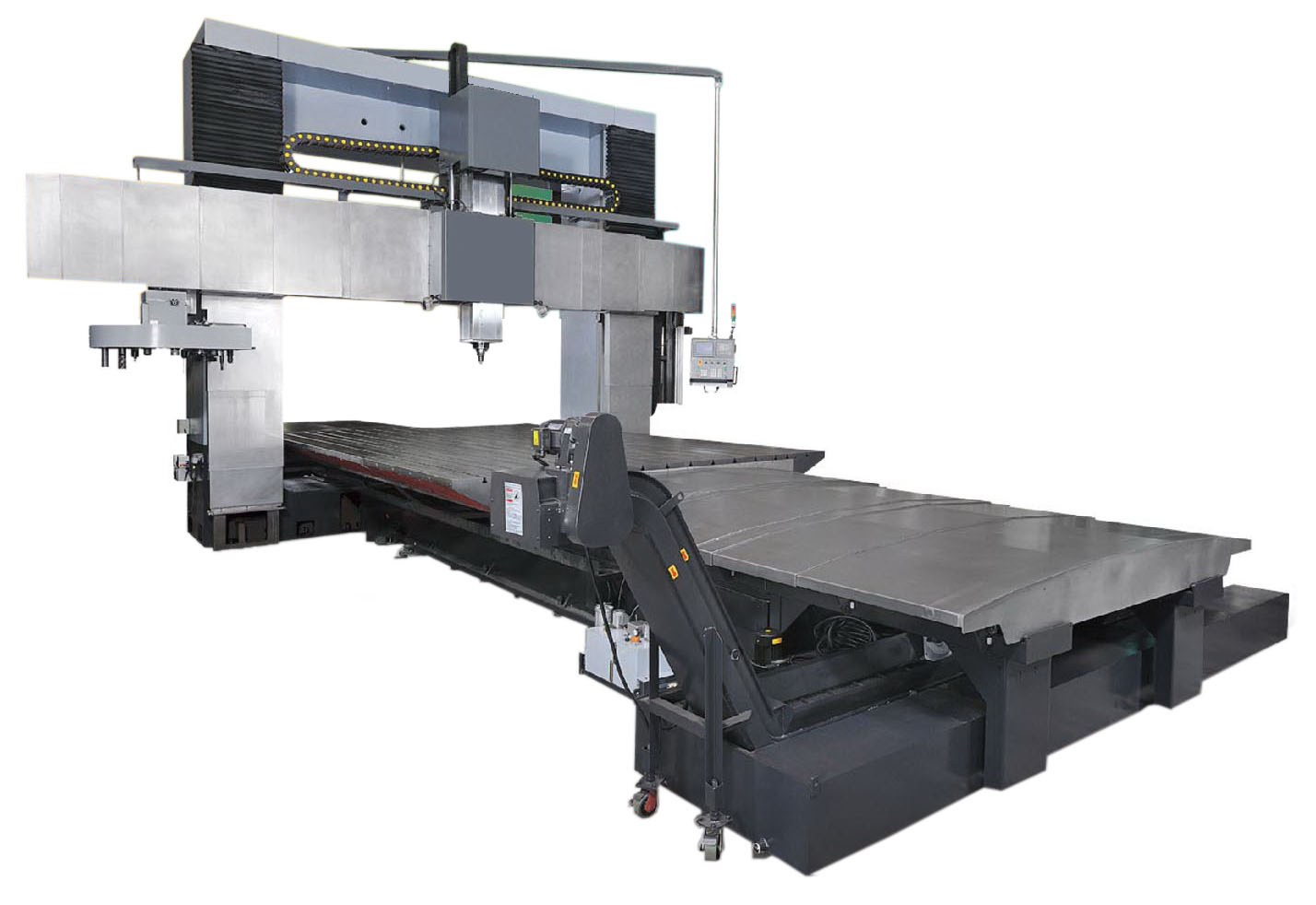

DOUBLE COLUMN VERTICAL CNC MACHINING CENTERS AYNC SERIES WITH MOVEABLE CROSSBEAM

AYNC-3020 ~ 12055

Machine features
The machines are designed specifically for processing large-sized workpieces with a large weight, and ensuring the highest possible performance with high positioning accuracy and leveling resistance. The AYNC series machines are unique in its kind in the global market for metal-working equipment. Machines with a length of 8 meters or more are designed with linear guides along the X axis. The entire series of AYNC machines has roller linear guides with a wide range of technological preparation of production. The structural parts of the equipment are made of high-quality cast iron, and have been subjected to hardening and normalization. High quality of the materials used affects the quality of processing, eliminating deformations and ensures a long service life of the equipment. The distribution of efforts on the guides of the beam causes an increased stability of the headstock on heavy cutting modes. The beam is equipped with a linear position sensor to ensure high positioning accuracy. BT50 spindle taper. Gear spindle provides high torque, helps to raise the level of performance on heavy processing conditions. Ability of using various milling heads for any processing requirements.

Machine features

The machines are designed specifically for processing large-sized workpieces with a large weight, and ensuring the highest possible performance with high positioning accuracy and leveling resistance. The AYNC series machines are unique in its kind in the global market for metal-working equipment.
Machines with a length of 8 meters or more are designed with linear guides along the X axis.
The entire series of AYNC machines has roller linear guides with a wide range of technological preparation of production.
The structural parts of the equipment are made of high-quality cast iron, and have been subjected to hardening and normalization. High quality of the materials used affects the quality of processing, eliminating deformations and ensures a long service life of the equipment.
The distribution of efforts on the guides of the beam causes an increased stability of the headstock on heavy cutting modes.
The beam is equipped with a linear position sensor to ensure high positioning accuracy.
BT50 spindle taper.
Gear spindle provides high torque, helps to raise the level of performance on heavy processing conditions.
Ability of using various milling heads for any processing requirements.

Machine features

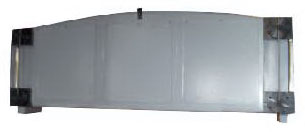

The arch-type beam is specially designed to increase the service life of the equipment

Rectangular type headstock

Vertical moveable drive

The side milling head is capable of steadily milling of surfaces at an angle of 90 ° and significantly reduce processing time, and at the same time increase productivity

The beam is equipped with a hydraulic disc brake, which allows for safe positioning of the beam and also serves as an additional safety device

Optional automatic tool changer for 16/20 units

Extra-wide bed has 4 linear guides combined with a roller-type dynamic transmission, which ensures maximum stability of the equipment

TECHNICAL SPECIFICATION OF DOUBLE COLUMN VERTICAL CNC MACHINING CENTERS AYNC SERIES WITH MOVEABLE CROSSBEAM

Parameters/Model	Unit	AYNC -3020	AYNC -4020	AYNC -5020	AYNC -4025	AYNC -5025	AYNC -6025	AYNC -5030	AYNC -6030	AYNC -8030	AYNC -10030
X Axis travel	mm	3000	4000	5000	4000	5000	6000	5000	6000	8000	10000
Y Axis travel	mm	2000			2500			3000
Z Axis travel	mm	870/1200; 800/1300
W Axis travel	mm	1300
Spindle nose to table surface	mm	1500/ 2000 ~ 3000 (option)			1700/ 2000 ~ 3000 (option)			1700/ 2000 ~ 4000 (option)
Distance between columns	mm	2050			2550			3050
Table (length)	mm	3000	4000	5000	4000	5000	6000	5000	6000	8000	10000
Table (width)	mm	1500			2000			2500
T-Gap	mm	22
Max table load	kg	10000	12000	14000	13000	16000	20000	18000	22000	32000	38000
Spindle motor power	kV/HP	18.5/ 22; 25/ 30 (option)
Spindle speed	rpm	3000/ 4500 (option)
Spindle nose		BT-50
Rapid feed speed (X,Y axis)	mm/min	10000/ 10000		8000	10000/ 10000		8000	8000/ 8000
Rapid feed speed (Z axis)	mm/min	8000
Work feed speed	mm/min	5 ~ 5000
Hydraulic oil tank capacity	L	200
Lubrication oil tank capacity	L	20
CNC system		Mitsubishi/ Fanuc
Air consumption	kg/cm²	6
Power consumption	kV	55			60		65	75		100
	kg	27500	30000	35000	48000	55000	59000	63000	67000	71000	75000
Machine length	mm	9980	11300	13300	12000	13300	15800	13300	15800	20500	25500
Machine width	mm	5300			5900			6400
Machine height	mm	5800			6000			6000

Parameters/Model	Unit	AYNC -6035	AYNC -8035	AYNC -10035	AYNC -6042	AYNC -8042	AYNC -10042	AYNC -12042	AYNC -6050	AYNC -8050	AYNC -10050	AYNC -12050	AYNC -8055	AYNC -10055	AYNC -12055
X Axis travel	mm	6000	8000	10000	6000	8000	10000	12000	6000	8000	10000	12000	8000	10000	12000
Y Axis travel	mm	3500			4200				5000				5500
Z Axis travel	mm	870/1000/1200;800
W Axis travel	mm	1600
Spindle nose to table surface	mm	1700/2000/4000
Distance between columns	mm	3550			4250				5050				5550
Table (length)	mm	6000	8000	10000	6000	8000	10000	12000	6000	8000	10000	12000	8000	10000	12000
Table (width)	mm	3000			3200				4000				4200
T-Gap	mm	22/28
Max table load	kg	23000	35000	40000	25000	35000	40000	42000	28000	35000	40000	42000	42000	42000	42000
Spindle motor	kV/HP	18.5/ 22; 25/ 30 (option)
Spindle speed	rpm	3000			3000/ 4500 (option)
Spindle nose		BT-50
Rapid feed speed (X,Y axis)	mm/min	8000/8000	6000/8000		8000/8000	6000/8000			8000/6000	6000/6000
Rapid feed speed(Z axis)	mm/min	8000							6000
Work feed speed	mm/min	5 ~ 5000
Hydraulic oil tank capacity	L	200
Lubrication oil tank capacity	L	30
CNC system		Mitsubishi/ Fanuc
Air consumption	kg/cm²	6
Power consumption	kV	80	100	120	90	100	120	120	90	100	100	120	100	100	120
	kg	76000	93000	115000	85000	110000	132000	152000	105000	116000	138000	154000	128000	148000	172000
Machine length	mm	15800	20500	20500	15800	20500	25000	30500	15800	20500	25500	30500	20500	25500	30500
Machine width	mm	6900			7600				8300				8900
Machine height	mm	6350/5800/7300							6350/6800/7300/7900/8600

Systems and accessories supplied as standard
- CNC system Fanuc 0iM	- Spindle and gearbox cooling system
- Automatic lubrication system	- Pedal switch
- Telescopic safety cover	- Column antidust safety cover
- Safety cover for crossbeam	- Automatic hydraulic lock on the crossbeam on a vertical course
- Manual pulse generator	- Lamp
- Warning light	- RS 232 port
- Coolant gun, water gun	- Air cooling of electrical cabinet
- Alignment bolts and gaskets	- Tool box
- Manual operation	-

Additional options
- CNC System Fanuc 31i	- Side milling head 10 HP
- Right-hand headstock, machining angle 90 °	- Manual universal headstock
- Semi-automatic headstock with bevel gears	- Semi-automatic fence from chips, auger for chip removal, trolley
- Automatic tool changer for 16/20 pieces	- 300/500 millimeter lifting device
- Measuring ruller	- Full safety cover with the top roof
- Sliding door	- Rigid tapping (CNC allows to eliminate the floating chuck for the tap)
- Oil separator for cleaning the top layer of coolant	- Coolant holder
- Coolant through spindle	- Spindle with belt drive
- Spindle with gear drive	- Semi-automatic overhead spindle head with a transformation step of 5 °
- Pendant type control panel	- Automatic tool length measurement device
- Moving axes with servomotors
