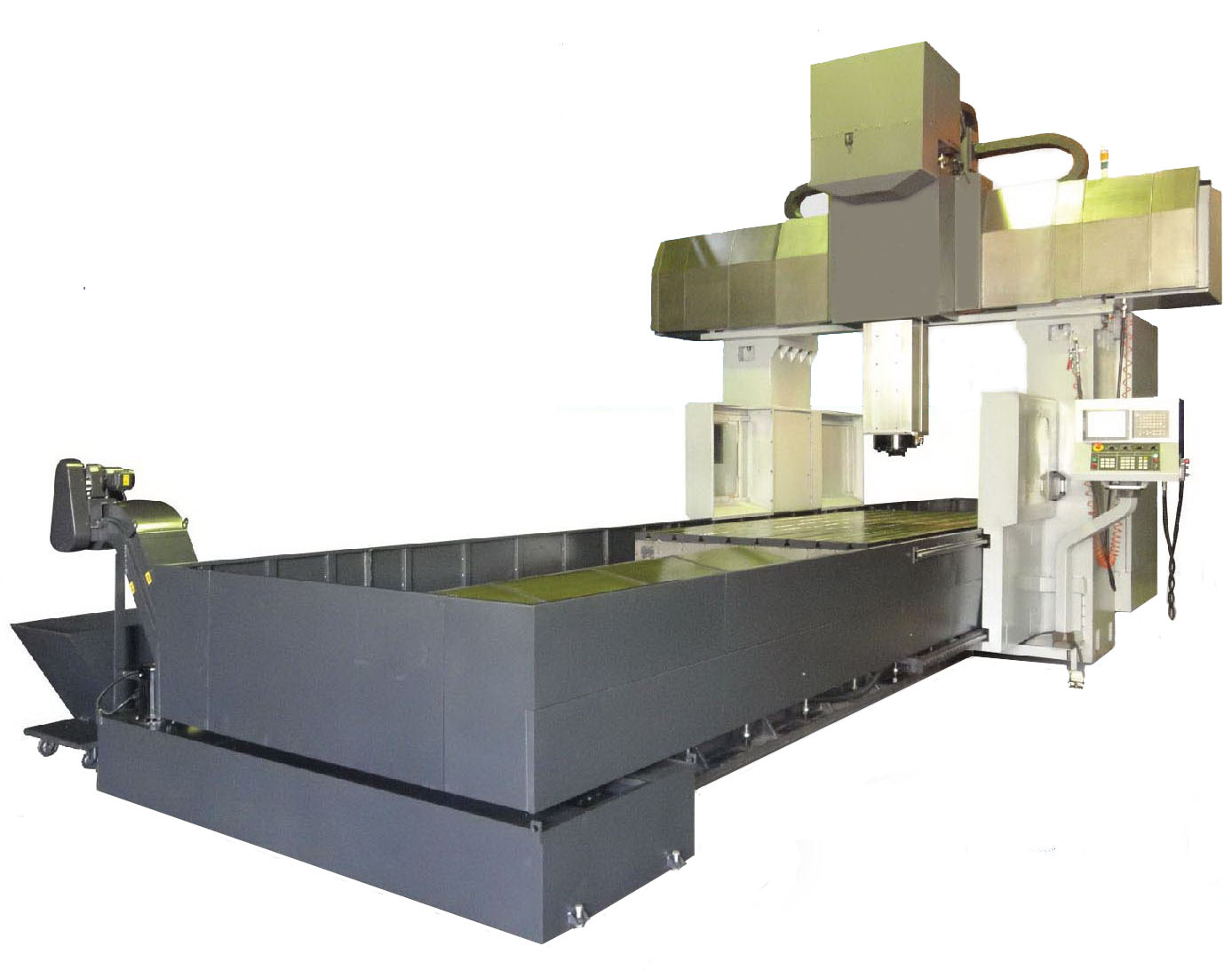

DOUBLE COLUMN VERTICAL CNC MACHINING CENTERS AYH SERIES WITH FIXED CROSS BEAM



Machine features
  • Structural parts of the equipment are made of high-quality cast iron, and subjected to hardening and normalization. The high quality of the materials used affects the quality of processing, excluding deformation and ensures a long service life of the equipment.
  • The designed design of the equipment with a linear guide along the X axis and rectangular guides along the Y and Z axes, and taking into account the large distance between the guides, allows for the performance of heavy machining at high speeds.
  • Guide beams help to increase the distribution of load forces, which in turn increases the stability of the spindle head during heavy processing.
  • The rectangular design of the spindle head has 8 sliding surfaces to provide increased rigidity.
  • The increased sectional area of the spindle head provides high stability when extending the spindle, which helps to achieve excellent results when using heavy processing conditions.
  • BT50 spindle cone.
  • The spindle with gear transmission provides high torque, and helps to raise the level of performance in heavy duty machining.
  • Possibility of using various milling heads for any processing requirements.
Machine features
увеличить

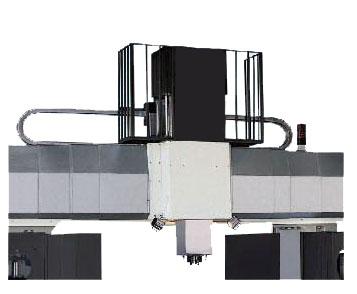

The spindle has a strong rectangular structure, which allows you to perform high loads while moving the spindle. At the request of the customer, the spindle head can be moved to a distance of 870, 1000, 1200 mm.

увеличить

Automatic tool changer for 24/32/40/60 units

увеличить

Optional turntable for special machining requirements

увеличить

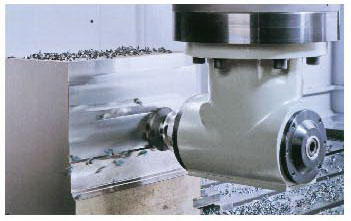

The ability to install heads of different types

увеличить

Universal multi-head.

DOUBLE COLUMN VERTICAL CNC MACHINING CENTERS CYH SERIES WITH FIXED CROSS BEAM

Parameters/Model Unit AYH
-3020		 AYH
-4020		 AYH
-5020		 AYH
-3025		 AYH
-4025		 AYH
-5025		 AYH
-5030		 AYH
-6030		 AYH
-8030		 AYH
-6035		 AYH
-8035		 AYH
-10035
X Axis travel mm 3000 4000 5000 3000 4000 5000 5000 6000 8000 6000 8000 10000
Y Axis travel mm 2000 2500 3000 3500
Ход по Оси Z mm 870/1200 870
Height,spindle end-table mm 1025/1225
Distance between columns mm 2100 2600 3100 3600
Table (length) mm 3000 4000 5000 3000 4000 5000 5000 6000 8000 6000 8000 10000
Table (width) mm 1600 2000 2500 3000
Max. table load kg 10000 13000 15000 10000 13000 15000 20000 25000 30000 10000 13000 15000
Spindle motor kw/HP 18.5/ 22; 25/ 30 (option)
Spindle speed rpm 3000/ 4500 (option)
Spindle cone   BT-50
Rapid feeding speed (X,Y Axis) mm/min 100000 X:6000/Y:8000
Rapid feeding speed (Z axis) mm/min 8000
Feeding speed mm/min 5 ~ 5000
Automatic tool changer pcs 24/32/40/60
Max. tool diameter mm 110/220 110
Max. tool length mm 300/350 300
Max. tool weight kg 18/25 18
Hydraulic oil tank capacity L 140 180
Lubrication tank capacity L 20 25
Coolant tank capacity   400 600 800 600 800 1000 1200 1400 1600 1400 1600 1800
X axis guide   Linear
Y,Z axis guide   Linear
CNC system   Mitsubishi/ Fanuc
Air consumption kg/cm2 6
Power consumption kv 45 50 55 60 60 70 80 80 90 100
kg 33600 38500 43500 36300 41400 46500 48000 55000 65000 60000 72000 85000
Machine length mm 8100 11000 12600 8100 11000 12600 12600 15000 20500 15300 20500 26000
Machine width mm 5300 5900 6500 7200
Machine height mm 5100 5200 5600


Systems and accessories supplied as standard
- CNC system Fanuc 0iM - Spindle and gearbox cooling system
- Automatic axis lubrication system - Pedal switch
- Telescopic cover - Column antidust safety cover
- Safety cover for crossbeam - Automatic hydraulic lock on the crossbeam on a vertical course
- Manual pulse generator - Lamp
- Warning light - RS 232 port
- Coolant gun, water gun - Control box air conditioning
- Alignment bolts and gaskets - Tool box
- Automatic tool changer 24 pcs - Manual operation
Additional options
- CNC system Fanuc 31i- Side milling head 10 HP
- Right-hand headstock, machining angle 90 ° - Manual universal headstock
- Semi-automatic headstock with bevel gears - Semi-automatic fence from chips, auger for chip removal, trolley
- Automatic tool changer 40 pcs - 200-mm loading tool
- Measuring ruller - Full safety cover with the top roof
- Sliding door - Rigid tapping
- Oil separator for cleaning the top layer of coolant - Coolant holder
- Coolant through spindle - Spindle with belt drive
- Spindle with gear drive - Semi-automatic overhead spindle head with a transformation step of 5 °
- Control panel - Automatic tool length measurement device
