| Machine features |
|---|
Spindle head gear box gas special design. All the gears provide high accuracy grinding, heavy cutiing, high torque.
Electromagnetic check. Changed traditional clamping way. Powerful locking device stable and suitable for heavy cutting.
Digital read out system (option).

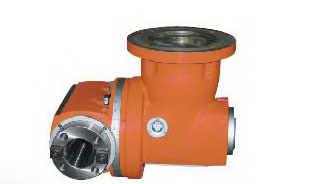

90 degree head
Deep hole angular head
Universal head
| Parameters/ Model | Unit | AB -1500 |
AB -2000 |
|---|---|---|---|
| X Axis travel | mm | 1500 | 2000 |
| Y Axis travel | mm | 1000 | 1000 |
| Z Axis travel (head) | mm | 300 | 300 |
| Distance between the column | mm | 1000 | 1000 |
| Spindle nose to table surface | mm | 550 | 550 |
| Table (width) | mm | 1500 | 2000 |
| Table (length) | mm | 700 | 700 |
| Vertical motor power | HP | 10 | 10 |
| Net weight | kg | 6500 | 8000 |
| Length | mm | 4800 | 5900 |
| Width | mm | 2150 | 2150 |
| Height | mm | 2250 | 2250 |
| STANDART SYSTEMS AND ACCESSORIES | |
|---|---|
| - Working zone cooling system | - Tool clamping pneumatic system |
| - Working light | - Micro feeder agjustment |
| - Guidelines are plated with Turcite-B | - Automatic lubrication for buttom guidelines |
| - Automatic hydraulic lock of the crossbeam | - Crossbeam has safetyguard |
| - Tool box | - Manual operation |
| Additional options | |
|---|---|
| - Cutting and auxiliary tools | - Different spindle (15 HP) |
| - Workpiece for testing | - Digital display device Fagor |
| - Multiangular heads | - Other accessories based on customker requirements |
