VERTICAL CNC MILLING MACHINE CENTERS VMCA SERIES
Machine description

Vertical CNC milling centers of the VMCA series are distinguished by structural rigidity, high speed and machining accuracy, quality of the products obtained, and highly efficient production efficiency.

The high-speed and high-performance machining centers VMCA series are used in the automotive industry, the aerospace industry, instrument engineering, as well as in many other industries, such as the production of molds, dies, high-quality tools.

CNC milling machines are used in serial, small-scale and single production, where the processing of any type of material is necessary.

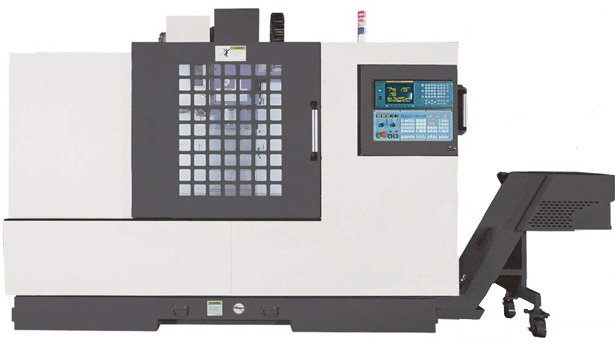

VERTICAL CNC MILLING MACHINE CENTERS VMC SERIES, MODEL: VMCA-1100

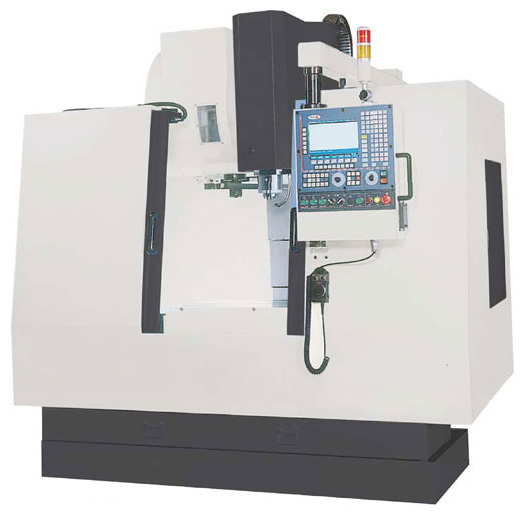

VERTICAL CNC MILLING MACHINE CENTERS VMC SERIES, MODEL: VMCA-650E

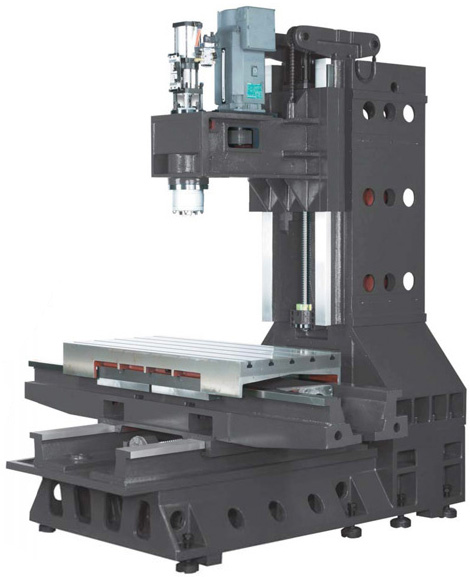

MACHINE STRUCTURE/VERTICAL CNC MILLING MACHINE CENTERS VMCA SERIES
Machine features
увеличить

Linear guides installation (option)

увеличить

The gearbox provides high torque and the ability to work on hard modes (option)

увеличить

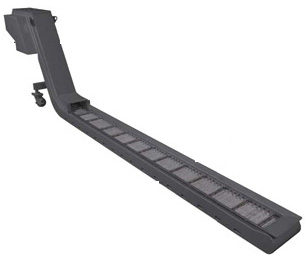

Chain type conveyor (option)

увеличить

Screw type conveyor (option)

увеличить

Automatic tool changer for 20 units/unmanipulator type

увеличить

The device of automatic change of the tool with a rotary hand on 24 units

увеличить

Inspection

увеличить

Dynamic vibration inspection

увеличить

Additional flushing nozzles

увеличить

Coolant in the area of the spindle helps to provide additional cooling of the workpiece

увеличить

Corner Inspection, Axis X/Y

увеличить

Laser inspection table

VERTICAL CNC MILLING MACHINE CENTERS VMCA SERIES/TECHNICAL SPECIFICATION
Parameters/Model Unit VMCA-650E VMCA-800E
TABLE
Table size mm 800x450 800x450
Table working surface mm 650х450х400 800х450х400
Max. table load kg 400 500
Т-gap mm 18 х 100 х 4
Travel
X/Y/Z axis travel mm 650х480х510 800х480х510
Distance from spindle end to table surface mm 125-635
Distance from spindle center to stand mm 500
Table distance to floor surface mm 760
SPINDLE
Spindle speed rpm 8000
Spindle diameter mm 65
Cutter shank, mandrel   BT40/CAT40 (option)
FEED
X/Y/Z axis raped feed speed m/min 16/24 (option)
X/Y/Z axis feed speed m/min 10
TOOL MAGAZINE
Direction   (two sides)
Number of tools pcs 16
Max. tool weight kg 6
Max. tool diameter mm 80
Max. tool length mm 250
OTHER CHARACTERISTICS
Energy consumption kva 15
Air consumption kg/cm2 6
Spindle motor power kw 7.5/11
X/Y/Z axis servo motor power kw 1
Controller   Fagor/Siemens
Coolant motor power HP 1/4
Machine net weight kg 3500 4500
Machine size(LхWxH) mm 1930х2100х2450 1930х2200х2450


Parameters/Model Unit VMCA-850 VMCA-1000N VMCA-1100 VMCA-1300
TABLE
Table s mm 1000x510 1200х510 1300х610 1400х610
Table working surface mm 850х560х560 1020/560/560 1140х610х610 1270х610х610
Max. table load kg 600 850
Distance from spindle end to table surface mm 100-660 110-720
Т-gap mm 18 х 100 х 5 18 х 125 х 5
SPINDLE
Cutter shank, mandrel   BT40 BT50
Spindle inner diameter mm 60 70 80
Distance from spindle center to stand mm 620 675
Spindle speed (belt) rpm 60-8000/10000 (option)
Spindle speed (gearbox) rpm 40-2000,2001-8000
Draw force kgf 700 950 2000
FEED
X/Y/Z rapid feed speed m/min 16/24/20 , 36/36/24 - linear guideways (option) 20/20/20 , 30/30/24 - linear guideways (option)
X/Y/Z axis feed speed m/min 10
MOTOR
Main motor power kw 5.5/7.5 7.5/11 7.5/11/ 11/15 (option)
TOOL MAGAZINE
Type   without manipulator/with rotating arm
Number of tools pcs 20/24 20/24, 16/24
Max. tool weight kg 8 8 15
Max. tool diameter mm 100/90 100/90 146/105
Max. tool length mm 250 250 300
OTHER CHARACTERISTICS
Power consumption kva 20 25 25 25
Air consumption kg/cm2 6
Coolant tank capacity L 200 300
Machine net weight kg 5500 5700 6500 6800
Machine size (LхWxH) mm 2600х2230х2750 2820х2230х2750 3100х2230х2950 3400х2230х2950


Standart systems and accessories
- Spindle air purge device - 16-unit automatic tool changer / manipulator-free type
- Automatic lubrication system - Coolant splash guard
- Coolant system - Foundation bolts, pads
- Automatic switch off - Tool box
- RS-232 port - Telescopic guides
- Working light - Manual operation


Additional options
- Transformer 380V - Automatic tool length measuring device
- Voltage regulator - Controller replacement
- Air compressor - Engine replacement
- Device for blowing spindle seats - Spindle oil cooler
- Heat exchanger for an electrical cabinet - Turntable + tailstock
- Coolant through spindle - CNC rotary table
- Rigid tapping - CE
- Conveyors - Flushing system
- Auxiliary cutting tools - Other accessories upon request
