The body of the headstock is made of high-strength cast iron. Spindle rotation is carried out using two high-precision tapered roller bearings brand SKF. The ability to jog feed spindle. The presence of an automatic lubrication system spindle headstock. On the control panel, the on / off buttons are set to jogging mode, coolant, emergency stop spindle button.

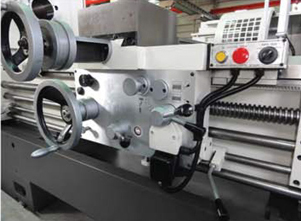

Bed and apron of the machine have a massive structure and are proportional to the size of the machine. The ability to process large parts and achieve high precision processing performance. The machine is easy to use. Distance between centers of more than 3 meters have additional supports for the longitudinal screw to prevent sagging.

The massive mononolithic bed has a special design that allows to achieve greater rigidity. Frame width 400 mm with optional widths up to 460 mm. This allows to ensure the stability of processing on heavy cutting conditions. Longitudinal and transverse guides were subjected to hardening and subsequent passage of the process of precision grinding. The support of the machine is covered with Toursite.

The electrical cabinet of the machine complies with electrical safety standards. The cabinet is equipped with fuses manufactured by BUSS.

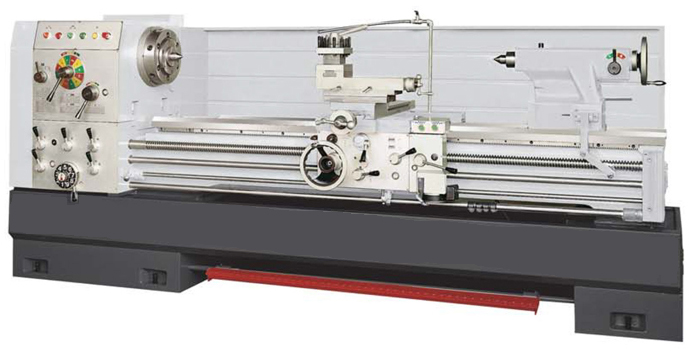

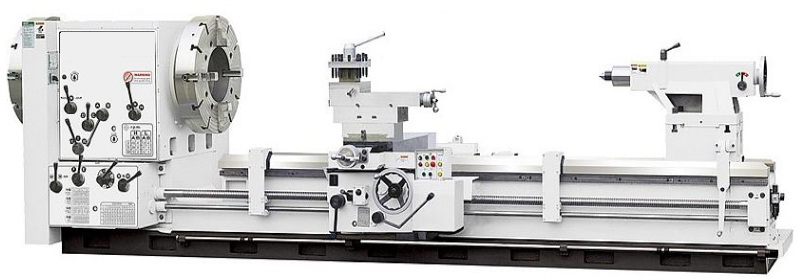

UNIVERSAL TURNING MACHINES SERIES AK/N, MODEL: 960/1060/1200/1200N/1400N/1600N

Copier with a long stroke reaching 120 mm

Automatic guides are lubricated as the carriage moves. The transverse screw is lubricated by immersion in an oil bath.

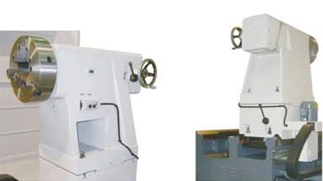

The body of the tailstock is made of high-strength cast iron. Cone MT6. Pinol has a 2-speed gearbox. On the tailstock there is a gearbox of manual movement in the longitudinal direction along the bed guides.

Cone device for increased load capacity

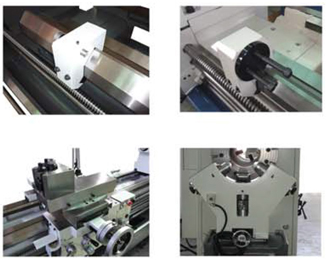

Cross and longitudinal upper swivel slides

Rotating tailstock quill with A2-11 shank and MT7 inner cone

• 1 + 2 + 3 - to move the support with a shortened slide;
• 1 + 2 + 5 - to move the support with a long slide;
• 4 + 5 - to move the tailstock and the moving lunette
• Heavy duty roller bracket
