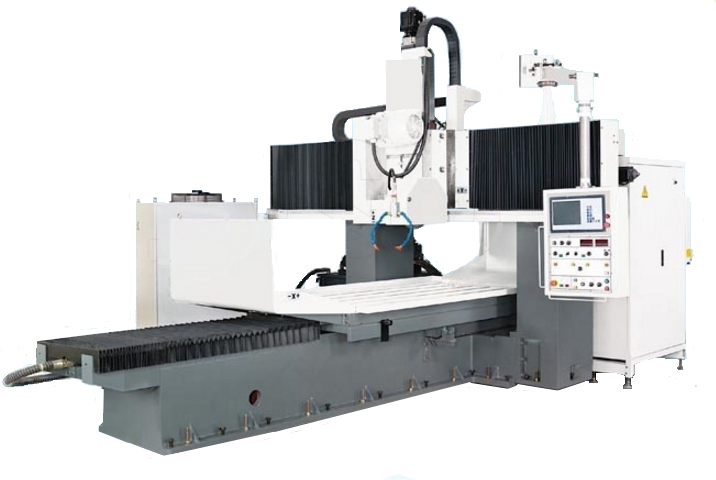

DOUBLE COLUMN GRINDING MACHINES AP SERIES
Machine features
  • The structural parts of the equipment are made of high-strength cast iron grade FC, are reinforced, and subjected to hardening and normalization, which allows to ensure a continuum without deformation throughout the life of the equipment. The equipment can be used without interruption for many years of use.
  • High rigidity of the machine is ensured. The guides are coated with Turcite-B, which also affects the increase in wear resistance, reduction of friction, and increase the overall stability of the machine.
  • The equipment is well suited to work with any metals and workpieces. The equipment has high precision indicators for processing straight and inclined surfaces.
Functions
увеличить

Horizontal jog feeding

увеличить

Horizontal channel machining

увеличить

Horizontal non-stop feeding

увеличить

Vertical channel machining

увеличить

Vertical non-stop feeding

увеличить

Vertical jog feeding

DOUBLE COLUMN GRINDING MACHINES AP SERIES
Parameters/Model Unit AP-1510-AP-3010
 AP-2015-AP-6015 AP-3020-AP-6020 AP-3025-AP-8025 AP-4030-AP-10030 AP-4035-AP-12035 AP-6040-AP-12040
Table size (Length) mm 1500~3000 2000~6000 3000~6000 3000~8000 4000~10000 4000~12000 6000~12000
Table size (Width) mm 700 1000 1600 2000 2500 3000 3500
Distance from circle to table mm 0~500 0~900/1100 0~1000/1350
Center of spindle-table mm 703 1154/1354 1254/1604 1305/1655
X Axis travel mm 1500~3000 2000~6000 3000~6000 3000~8000 4000~10000 4000~12000 6000~12000
Y axis travel mm 1000 1500 2000 2500 3000 3500 4000
Z Axis travel (head) mm 500 600/800 750/1100
Distance between columns mm 1040 1640 2140 2640 3140 3640 4140
X axis feed (hydraulic type) m/min 5~25 5~30
Rapid feed Y axis mm/min 2000 4000
Rapid feed Z axis mm/min 1000 2000
Min. feed Z axis mm 0.002
Spindle speed rpm 1500 1200 1200/1000 1000
Spindle motor power HP 10/4 20/4 20/4; 30/4 30/4
Grinding circle size mm 406x127x50 506x203x50 506x203x50/610x254x100 610x254x100
Table T-gap mm 18/22 22/24 24/28
Control system   PLC


Standart systems and accessories
- Graphical interface of operation system - 3 axis telescopic cover
- Gringing stone base - Circle lubrication system X axis
- Diamond cutting tool - Hydraulic system cooling device
-Grinding wheel balancing mandrel - Voltage stabilizer including transformer
- Vertical and horizontal grinding wheel - Foundation bolts and linings
- Flange and magnetic chuck - Paper belt filter
- Centralized lubrication system - Air conditioning of the electrical cabinet
- Tool box - Manual operation


Additional options
- Additional vertical grinding head
- Grinding wheels 355x127x50 mm / 404x203.2x50 mm
- Spindle speed 1800/1500 rpm; 10/15 HP spindle motor
- Electrical rotary function; auxiliary drive; hydraulic lock
- Automatic grinding wheel adjustment device
- Semi-automatic / automatic grinding wheel dynamic balancing system
- Chip Container
- Coolant collector
- Air / Water Purifier
- Other accessories based on customer requirements
