LATHE CNC MACHINE ANC-A/L SERIES
Machine description

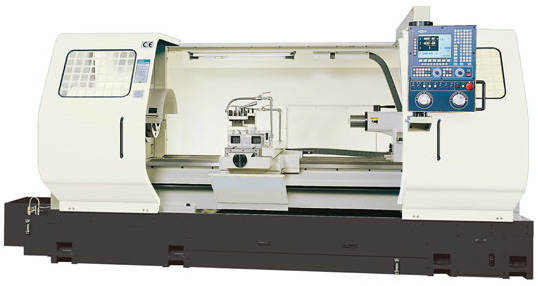

LATHE CNC MACHINE ANC-A/L SERIES, MODEL: ANC-770A

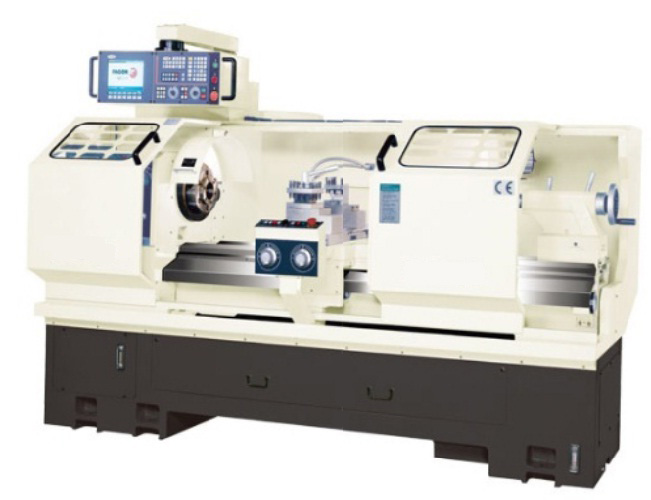

LATHE CNC MACHINE ANC-A/L SERIES, MODEL: ANC-530L
Machine features
  • Self-learning lathes, the ability to control the machine in manual mode with remembering and repeating operations in automatic mode.
  • Ability to select semi-automatic mode with automatic feed, manual mode, and also fully automatic mode.
  • Easy use of equipment, input of graphic data, assignment of functions using the input of programmable keys, storing backup data.
Equipment components and functions
  • Fagor 8055TC control system, 11 "LCD display
  • Built-in programmable controller
  • 8 bit, 32K RAM
  • Port RS-232
  • Functions of self-learning machine
  • Semi-automatic, automatic cycle, memorization of processing functions in accordance with the parameters of the workpieces
  • Automatic acceleration, deceleration mode
  • Accelerated moving
  • Self test
  • Constant cutting speed
  • Two electronic handwheels
  • Automatic search for the main menu page
  • Data entry through RS-232 port or floppy (option)

Control Panel Functions
  • Enter auxiliary functions
  • Axis selection
  • Enter start and end points
  • Constant cutting speed
  • Coolant on / off
  • Start / Stop Cycle
  • Emergency stop
  • Feed, switching feed speeds
  • Tool selection
  • Memory recovery function
  • Spindle speed switching
  • Reset function
  • Numeric keypad
  • Numeric keypad
  • Zoom function
  • Select spindle speed limit
  • Spindle rotation forward / backward / off mode selection
LATHE CNC MACHINE ANC-A/L SERIES/ TECHNICAL SPECIFICATION
Parameters/Model Unit ANC-460/ANC-460L ANC-460H/ANC-460HL ANC-530/ANC-530L ANC-660A ANC-770A ANC-890A
Swing over bed mm 460 460 530 660 770 900
Diameter over cross slide mm 240 240 305 360 470 600
Center height mm 230 230 265 325 380 445

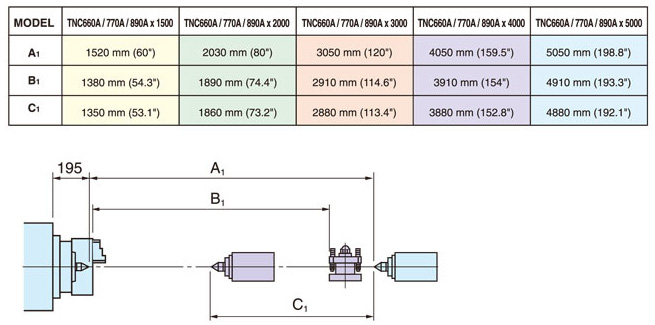

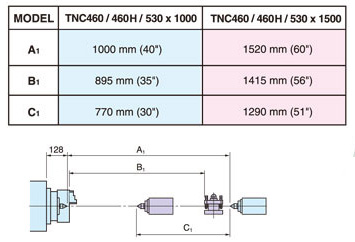

Distance between centers mm 1000
1500		 1000
1500		 1100
1520		 1500/2000/3000/4000/5000
Bed width mm 350 350 350 480
Spindle shank   A1-6/D1-6 A2-8 A1-8/D1-8 A1-11/D1-11
Spindle rotation range(4 steps)   H1:900-2500
H2:320-1000
L1:110-400
L2:45-150		 40-4000 H1:550-1600
H2:210-640
L1:80-250
L2:30-100		 H1:551-1200
H2:166-540
L1:76-165
L2:25-75
Spindle bore mm 54 54 80 104 104/155/230
Chuck hole diameter   8'' 8'' 10'' 12''/15''
Z axis longitudinal travel mm 895
1415		 895
1415		 895
1415		 1305,1800, 2800, 3800, 4800
Cross slide travel по оси X mm 280 280 300 400
Upper carriage width mm 115 115 125 280
Tool size mm 25x25 32x32
X axis rapid travel rpm 5
Z axis rapid travel rpm 10
Rear tailstock diameter mm 65 105
Rear tailstock travel mm 150
Rear tailstock cone   MT5 MT6
Spindle motor power HP 7.5/10 10/15 20/35
X,Z axis drivers kw DC Servo AC Servo DC Servo AC Servo
Speed range, manual feed m/rev 0.01-500
(0.0004-19.68)
Coolant motor power HP 1/8 1/4
Machine net weight
 kg 2270
2724		 2500
2750		 3000
3500		 5000,5500,6500,7500,8500
Machine size (LxWxH) mm according to machine standarts


Standart systems and accessories
- Automatic lubrication system - Connecting mandrel
- Cooling system - Center
- 8'' hydraulic hollow chuck, cylinder (for ANC-460H series) - Leveling pads
- Electrical tool holder H4 (for ANC-460H series) - Transformer 380 V
- 4 position tool holder - RS-232 port
- Coolant splash guard - Working light
- Manual operation


Additional options
- Motor switch for bigger size

- 4-position electrical turret
- Bigger spindle hall - 8 position hydraulic turret with a straight disc type
- 3-jaw chuck - Rotating center
- 4-jaw chuck - Hydraulical rear tailstock
- Hydraulical chuck - Chip conveyor
- Adapter plate - CE
- Steady rest - Voltage regulator
- Moveable rest - Fast tool holder
- Cutting, auxiliary tool
