HEAVY DUTY CNC MACHINES ANC/AR SERIES WITH SLANT BED
Machine description

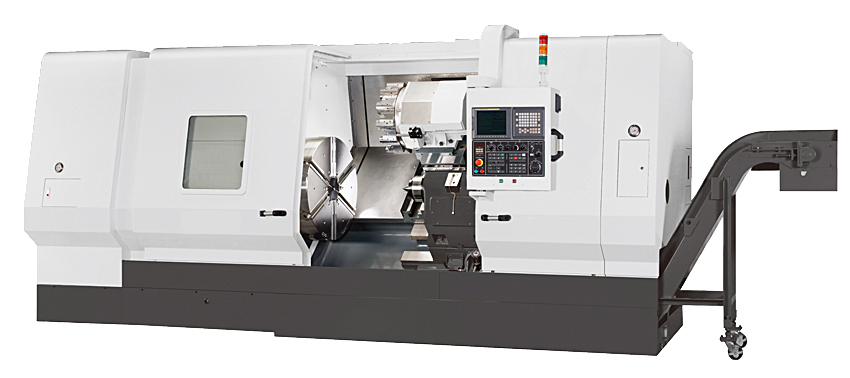

HEAVY DUTY CNC MACHINES ANC/AR SERIES WITH SLANT BED
увеличить

Tailstock

увеличить

Headstock

увеличить

Steady rest

увеличить

VDI drive turret

Machine features

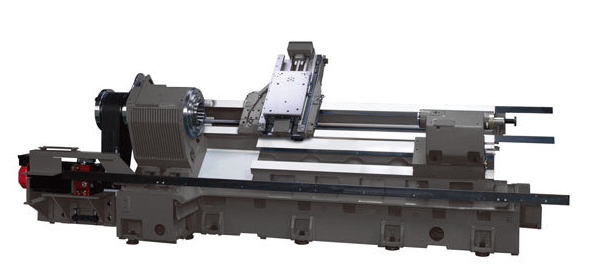

  • Machines of the VR series are designed for heavy machining conditions with a maximum cutting diameter of 500 mm
  • High speed indexing and positioning
  • 45-degree bed tilt for easy chip removal from the cut area
  • The powerful and rigid spindle allows you to reach a maximum rotational speed of up to 2500 revolutions per minute.
  • The powerful and rigid spindle allows you to reach a maximum rotational speed of up to 2500 revolutions per minute.
увеличить

Massive tail spindle stock

увеличить

Special gear system in the tailstock

увеличить

Hydraulic steady rest

увеличить

Straight type turret

HEAVY DUTY CNC MACHINES ANC/AR SERIES WITH INCLINED BED
Parameters/Model Unit ANC35x800 ANC35x1640 ANC35x2400 ANC35x3160
Swing over bed mm 660
Diameter over cross slide mm 480
Turn diameter mm 500
Turn length mm 820 1580 2340 3100
Distance between centers mm 880 1640 2400 3160
Max. bar diameter mm 91/150 (option)
Х axis travel/ mm 275
Z axis travel mm 885 1645 2405 3165
X/Y axis rapid feed m/min 12/15
X/Y axis working feed m/min 0.016-5000
Spindle cone   А2-8/A2-11 (option)
Tapered bearing diameter mm 160/220 (option)
Spindle bore diameter mm 102/165 (option)
Spindle speed range rpm 2500 + ZF/ 1650 + ZF (option)
Motor power kw 22/26
Chuck diameter mm 304
Turret type   Straight usage
Number of turret positions   10/12 (option)
Diameter of tool shank mm 32х32
Diameter of the mandrel mm 50
Indexing time sec. from chips to chips: 1 / from tool to tool: 0.7
The ability to move the tailstock   manual / programmable
The maximum travel of the tailstock mm 780 1540 2300 3060
Rear tailstock quill travel mm 100/160
Quill diameter mm 100/160
Spindle cone   MT5 (rotating quill)
Bed width mm 470
Slant bed angle   45°
Motor power kw 2.2
Air consumption kg/cm² 3
Oil tank capacity L 4.6
Lubricating oil pump drive power wt 25
Pump capacity cm³ 3-6
Max. coolant pump pressure kg/cm² 35
Coolant tank capacity L 140 200 260 320
Coolant pump drive power kw 0.75
Power consumption kva 46
Machine net weight
 kg 8870 11300 13700 16000
Machine size (LxWxH) mm 5304х2130х2235 6064х2130х2235 6624х2130х2235 7584х2130х2235


Paremeters/Model Unit AR33x880 AR33x1640 AR33x2400 AR33x3160
Swing over bed mm 850
Diameter over cross slide mm 640
Maximum turning diameter mm 710
Length of turn mm 820 1580 2340 3100
Bed width mm 870
Z axis width mm 470
Slant bed angle   45°
Distance between centers mm 880 1640 2400 3160
Spindle cone   А2-8/A2-11 (option)
Spindle bore diameter mm 102/165 (option)
Diameter of mandrel mm 91/140 (option)
Spindle speed range rpm 2500 + ZF/ 1650 + ZF (option)
Number of turret positions   10/12 (option)
Tool shank diameter mm 32х32
The diameter of the workpiece mm 50
Х axis travel mm 380 (355 + 25)
Z axis travel mm 885 1645 2405 3165
X axis rapid travel m/min 12
Z axis rapid travel m/min 15
Working feed speed m/min 0.001-500
Spindle motor   Fanuc a22i 22кВт
X axis drive   Fanuc a22Bi 4kw
Z axis travel   Fanuc a22i 4кВт
Hydraulic pump drive power kw 2.2
Coolant pump drive power kw 0.75
The ability to move the tailstock   manual/programmable (option)
The maximum travel of the tailstock mm 780 1540 2300 3060
Rear tailstock quill travel mm 100/160
Quill diameter mm 110/160
Quill cone   MT5 (rotating quill)
Hydraulic oil tank capacity L 80
Coolant tank capacity L 140 200 260 320
Machine net weight
 kg 9370 11800 14200 16500
Machine size (LxWxH) mm 5304х2130х2235 6064х2130х2235 6624х2130х2235 7584х2130х2235


Parameters/Model Unit AR38x1200 AR38x1700 AR33x200 AR33x3200
Swing over bed mm 970
Diameter over cross slide mm 720
Maximum turning diameter mm 850
Length of turn mm 1200 1700 2200 3200
Bed width mm 920
Slant bed angle   45°
Carriage width mm 700
Width of cross slide mm 520
Spindle cone   А2-11/A2-15/A2-20
Spindle speed rpm А2-11/66-230,158-550,430-1500
Spindle bore diameter mm 153/230/305/360
ТSpindle gear   3 step gear box
Inside spindle cone   120
Tool carriage   Direct Type or VDI Disk Type
Number of turret positions   10/12 (option)
Cross section of tool shank mm 32х32
Tool shank diameter mm 50
Х axis travel mm 450 (425 + 25)
Z axis travel, traverse mm 1200 1700 2200 3200
X axis rapid travel m/min 8
Z axis rapid feed m/min 10
Spindle motor   Fanuc a30i 30kw
X axis drive   Fanuc a22Bi 4kw
Z axis drive   Fanuc a30i 7kw
Hydraulic pump drive power kw 3.7
Lubrication pump drive power wt 25
Coolant pump drive power kw 0.75
Rear tailstock quill travel mm 200
Quill diameter mm 200
Quill cone   MT6 (rotating quill)
Hydraulic oil tank capacity L 80
Machine net weight
 kg 14200 14950 15700 17200
Machine size (LxWxH) mm 6160х2230х2445 6660х2230х2445 7160х2230х2445 8160х2230х2445


Standart systems and accessories/Series ANC,AR33
- Fanuc controller - Automatic lubrication, hydraulics, cooling system
- 12" 3х hydraulic hollow chuck - Splash safety guard
- 10-station straight type turret - Working light
- 2-step gear ZF - Manual tailstock with hydraulic quill
- Chip conveyor - Transformer 380 V
- Tool box - Manual operation


OPTIONS/SERIES ANC,VR33
- Bigger spindle hall, bigger motor - Self-centering hydraulic fixed rest (20-165 mm / 30-245 mm)
- Spindle oil cooler - C-axis with turret and power tool
- Other controller - Additional tool holders
- Tool presetter - Programmable tailstock
- Additional chucks with bigger hall - CE
- Chuck air through - Cutting, auxiliary tools


Standart systems and acccessories/Series VR38
- Fanuc controller - Automatic lubrication, hydraulics, cooling system
- 12" 3-jaw hydraulic hollow chuck - Splash safety guard
- 12-position automatic servo turret head - Working light
-3-step gear ZF -Manual tailstock with hydraulic quill
- Chip conveyor - Transformer 380 V
- Tool box - Manual operation


OPTIONS/SERIES AR38
- Bigger spindle hall,bigger motor - Self-centering hydraulic fixed rest (20-165mm/30-245 mm)
- Spindle oil cooler - C-axis with turret with power tool
- Controller switch - Additional tool holders
- Tool Presetter (Auto/Manual) - Driven toolholders
- Additional chucks with bigger hole - CE
- Chuck air through - Cutting, auxiliary tools
