HEAVY DUTY VERTICAL CNC MACHINES AKV SERIES
Machine description

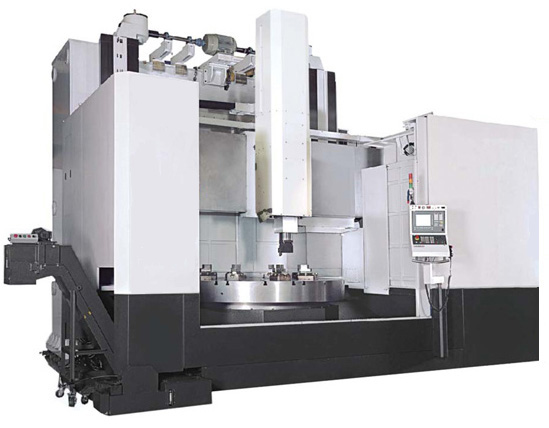

HEAVY DUTY VERTICAL CNC MACHINES TKV SERIES,MODEL:AKV-3500

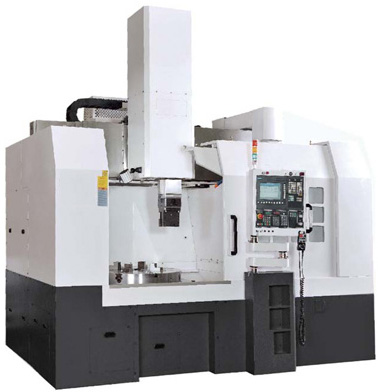

HEAVY DUTY VERTICAL CNC MACHINES AKV SERIES,MODEL: AKV-1100

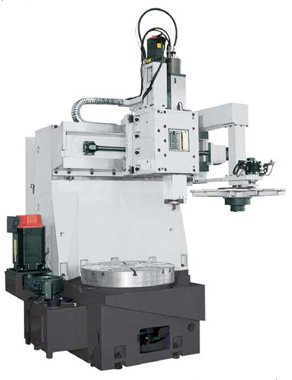

HEAVY DUTY VERTICAL CNC MACHINES TKV SERIES,MODEL: AKV-760

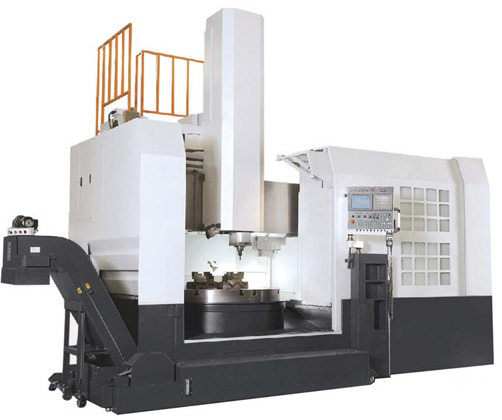

HEAVY DUTY VERTICAL CNC MACHINES TKV SERIES, MODEL: AKV-900

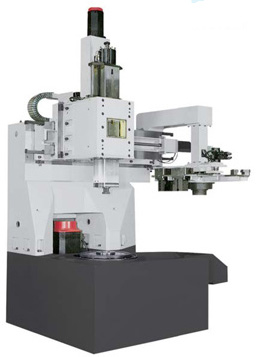

HEAVY DUTY VERTICAL CNC MACHINES AKV SERIES,MODEL:AKV-2000M



увеличить увеличить

Laser machine tool checking for accuracy

Machine features
увеличить

Gear Box

увеличить

Cross roller bearings

увеличить

Traverse provides parallelism and stability by positioning the lock with a hydraulic clamp

увеличить

One-piece structure of the base of the machine with integrated gearbox and spindle.

увеличить

Single-cast column

увеличить

Manual 4-jaw table

увеличить

Rigid tool system with T-shaped puller and hydraulic clamp. Composition: ram, T-shaped stripper, tool holder base, Tool holder.

увеличить

Hard tooling system. Composition: ram, two front contact tool clamp, tool holder base, Tool holder.

увеличить

Hard tooling system. Structure: ram, two front contact tool clip, the basis of a tool holder, tool holder

увеличить

Hard tooling system. Composition: ram, gear coupling, tool holder base, tool holder

увеличить

Hard tooling system. Composition: ram, 2nd spindle tool holder base, tool holder

увеличить

Slider (Z-axis)

увеличить

Traverse (X-axis)

увеличить

Automatic tool changer for 16 units (M-type)

увеличить

Control panel

увеличить

Automatic tool changer for 16 units (standard type)

увеличить

Reaming (option)

увеличить

Reaming (option 2)

увеличить

Power tool (option)

увеличить

Founding BT tool holder

увеличить

Linear tool holder (option)

увеличить

Measuring head to control the parameters of the workpiece (option)

увеличить

Hydraulic chuck (option)

увеличить

Tool presetter (option)

Parameters/Model Unit AKV-760 AKV-760M AKV-900 AKV-900M AKV-1100 AKV-1100M AKV-1600 AKV-1600M
Max. diameter of the product mm 850 950 1200 1600
Max. turning diameter mm 850 950 1200 1600
Distance from slide to table mm 925 925/500-1100 (option) 650-1450
Max. turning height mm 650 650/800 (option) 1200 1170
Max. workpiece weight kg 1500 2000 3500 5000
Diameter of table (hand chuck) mm 610 800 1000 1250
Table Speed range rpm 5-700 5-600 3-400 3-300
Gear shift speed   2 step - 2 step - 2 step
Spindle shank   A2-11 -
Spindle speed range rpm - 50-2250 - 50-2250 - 50-2250 - 50-2250
Number of tool positions   12 12 16
Tool size mm 25,32
Cross section of a sled mm 200х200 220х220 200х200 220х220 200х200 220х220 220х220 220х220
X-axis traverse m/min 10
Z-axis traverse m/min 10
X axis horizontal travel mm -100 +650 - 100 +750 -100 +750 -200 +950
Z axis vertical travel mm 600 700 900
Cutting feed rate mm/rev 0.001-500
Feed rate correction   0-150%
Cross slide travel   Fixed Fixed/200 x 3 steps (option) 800(200 х 4 steps)
CNC   Fanuc 0iT
Spindle motor power kw 18.5/22 30/37 18.5/22 30/37 37/45
X, Z axis drive power kw 4/4 7/7
Power tool drive kw - 11/15 - 11/15 - 11/15 - 11/15
Power consumption kva 40 55 40 55 75 90 75 90
Machine net weight
 kg 12500 13500 17800 18600 24500 25300
Machine size (LxWxH) mm 3450х3600х4500 3450х3600х4500 4060х4020х4000/4500 6500х4900х5200/5650


Parameters/Model Unit AKV-2000 AKV-2000M AKV-2500 AKV-2500M AKV-3000 AKV-3000M AKV-3500 AKV-3500M
Max. diameter of the installed product mm 2000 2500 3000 3600
Max. turning diameter mm 2000 2500 2970 3600
The distance from the slide to the table mm 650-1450 825-1825 860-1860 825-1825 860-1860 880-2380
Max. turning height mm 1200 1170 1600 1600 2000
Max. workpiece weight kg 8000 12000 15000 30000
Diameter of table (hand chuck) mm 1600 2000 2500 3000
Table speed range rpm 2-250 5-200 5-160 3-120
Gear shift speed   2 step
Spindle shank   -
Spindle speed range rpm - 50-2250 - 50-2250 - 50-2250 - 50-2250
Number of tool positions   12 16 12 16 12 16 12 16
Tool size mm 25,32,40 32,40
Cross section of a slide mm 200х200 220х220 250x250 300x300
X axis traverse m/min 10
Z axis traverse m/min 10
X axis horizontal travel mm -200 +1150 - 300 +1450 -300 +1650 -300 +2000
Z axis vertical travel mm 900 1200 1200 1500
Cutting feed rate mm/rev 0.001-500
Feed rate correction   0-150%
Cross slide travel   800(200 х 4 step) 1000(250 х 4 step) 1000(250 х 4 step) 1500(250 х 6 step)
CNC   Fanuc 0iT
Spindle motor power kw 37/45 60/75 60/75 60/75
X, Z axis drive power kw 7/7 5.5/5.5
Power tool drive kw - AC11/15 - 11/15 - 11/15 - AC15/18.5
Power consumption kva 75 90 90 105 90 105 120 210
Machine net weight
 kg 27500 28300 47000 49000 51000 53000 90000 100000
Machine size (LxWxH) mm 7100х5200х5250 7400х5200х5650 7600х5500х6650/7000 7800х6100х6650/7000 8500х6500х7400/800



Parameters/Model Unit AKV-4500 AKV-4500M AKV-6000 AKV-6000M AKV-7000 AKV-7000M
Max. diameter of the installed product mm 4500 5000 7000
Max. turning diameter mm 4500 5500 7000
The distance from the slide to the table mm 880-2320 1200-3000 1200-3000
Max. turning height mm 2000 2600 2600
Max. workpiece weight kg 40000 80000 10000
Diameter of table (manual chuck) mm 4000 5000 6000
Table Speed range rpm 1-85 1-50 1-20
Gear shift speed   2-step
Spindle shank   -
Spindle speed range rpm - 50-2250 - 50-2250 - 50-2250
Number of tool positions   16 20 16 24 16 24
Tool size mm 32,40
Cross section of a slide mm 300 x 300 400 x 400 400 x 400
X axis traverse m/min 10
Z axis traverse m/min 10
X axis horizontal travel mm -300 +2450 - 100 +3000 - 100 +4000
Z axis vertical movement mm 1500 2200 2200
Cutting feed rate mm/min 2000
Feed rate correction   0-150%
Cross slide travel   1500(250 х 6 step) 1800(300 х 6 step) 1800(300 х 6 step)
CNC   Fanuc 0iT
Spindle motor power kw 60/75 60/75 60/75 60/75 x 2 60/75 60/75 x 2
X, Z axis drive power kw 5.5/5.5
Power tool drive kw - AC15/18.5 - AC15/18.5 - AC15/18.5
Power consumption kva 75 90 90 105 90 105 120 210
Machine net weight
 kg 27500 28300 47000 49000 51000 53000 90000 100000
Machine size (LxWxH) mm 7100х5200х5250 7400х5200х5650 7600х5500х6650/7000 7800х6100х6650/7000 8500х6500х7400/800


Standart systems and accessories
- Hydraulic Hollow Chuck Cylinder - Air and water gun
- Counter spindle refrigerator - Chip Conveyor (right side)
- Hydraulic tailstock with rotating quill (ANC-210DT) - 380V transformer
- Automatic coolant, lubrication system - Working light
- Fanuc 0iT controller - Tool box
- Manual operation - Bolts set



Additional options
- Integrated spindle for the main spindle - Voltage regulator
- C-axis drive turret - Tool Presetter
- Y1 axis: travel ± 60 mm - Automatic workpiece measurement device
- Y2 axis: travel ±40 mm - Loading/unloading system
- Rear chip conveyor - Measuring ruller
- Bar feeder - Chuck air cleaning device
- Finished parts catcher - Automatic door
- Cutting, auxiliary tools
